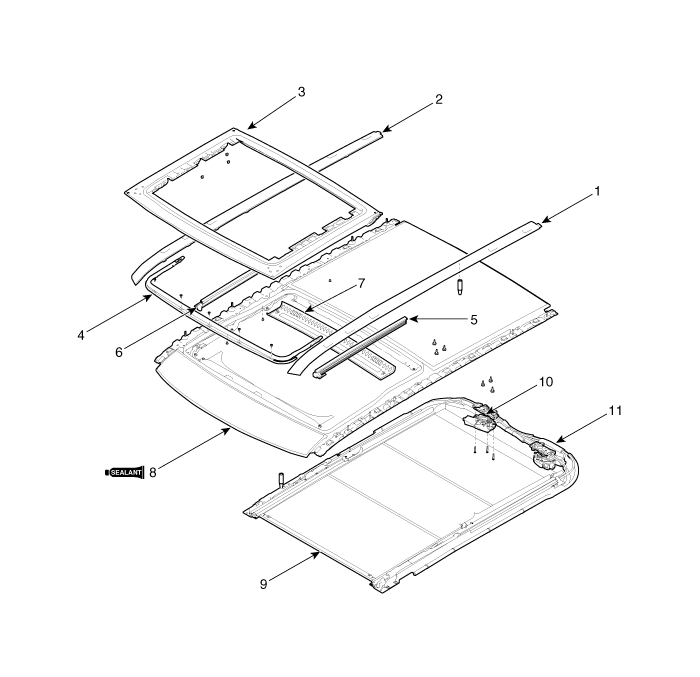

Components

1. Roof side moulding [LH]
2. Roof side moulding [RH]
3. Movable glass
4. Wind deflector
5. Decoration cover [LH]
6. Decoration cover [RH]
7. Center cover
8. Panorama sunroof frame assembly
9. Mechanism rail assembly
10. Glass motor assembly
11. Roller blind motor assembly

Panorama Sunroof
...

Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the alignment of the movable glass (C) that is between the front (A) and rear (B) glass and if needed adjust it. Alignment adjustment Standard v ...
