Kia Soul EV (PS EV) 2015-2020 Service Manual / Body Electrical System / Rear Wiper/Washer / Components and Components Location

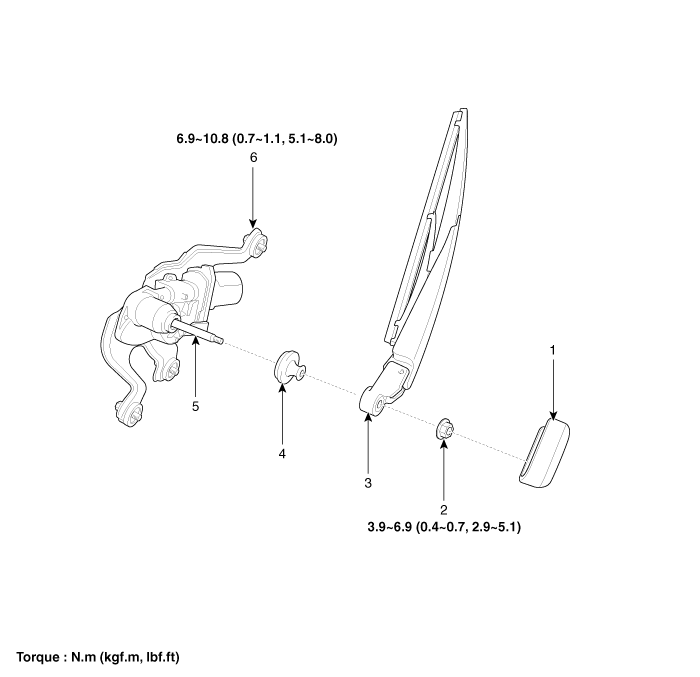

Component Location

1. Head cap
2. Rear wiper arm nut
3. Rear wiper arm & blade

4. Grommet
5. Rear wiper motor assembly
6. Rear wiper motor bolt

Rear Wiper/Washer

...

Rear Wiper Motor Repair procedures

Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively. 3. Check that the ...
